P18-03398-062A

4.0

1.0

3.0

SQUARE FOOTAGE:

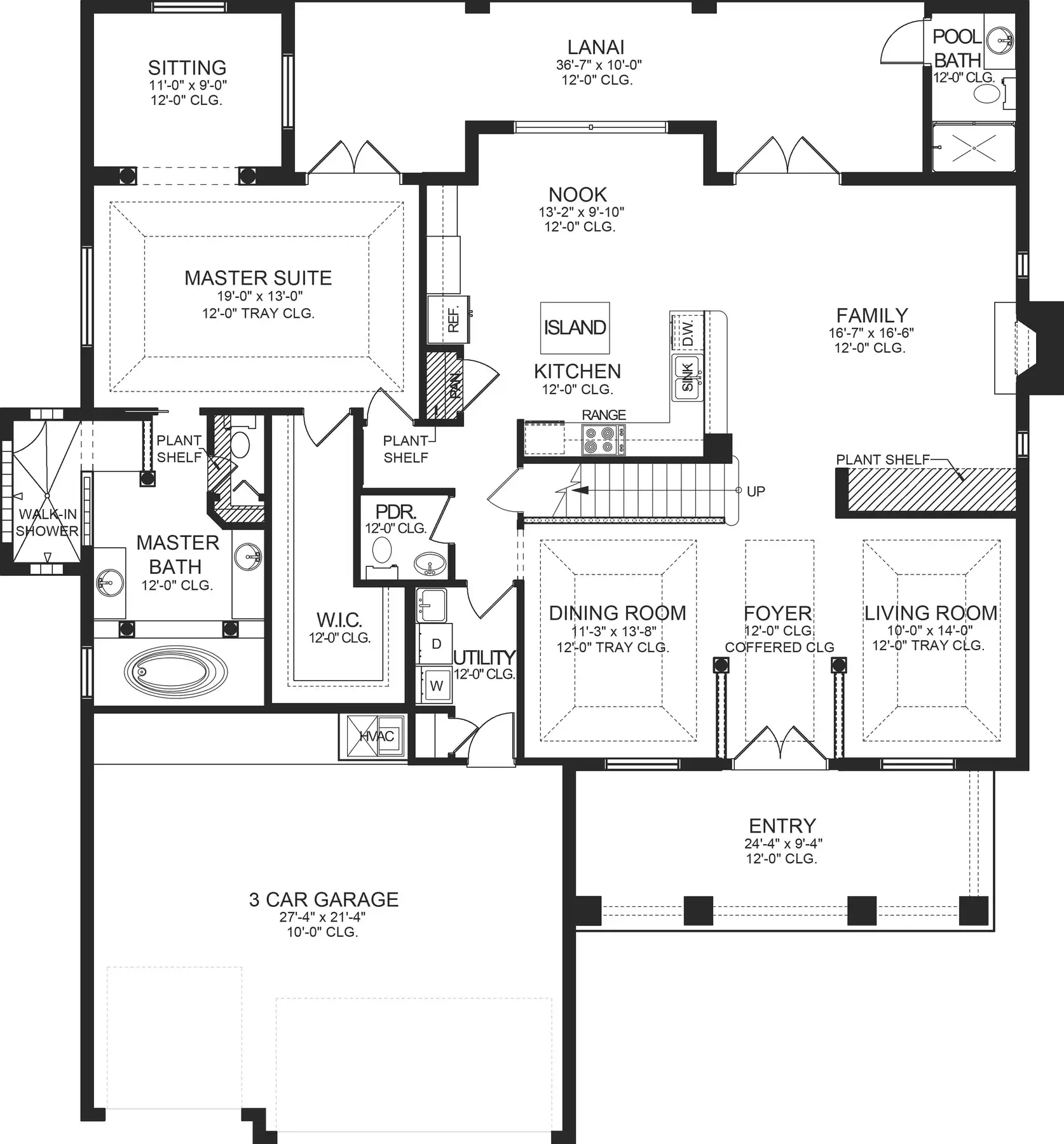

First Floor:

2124.0

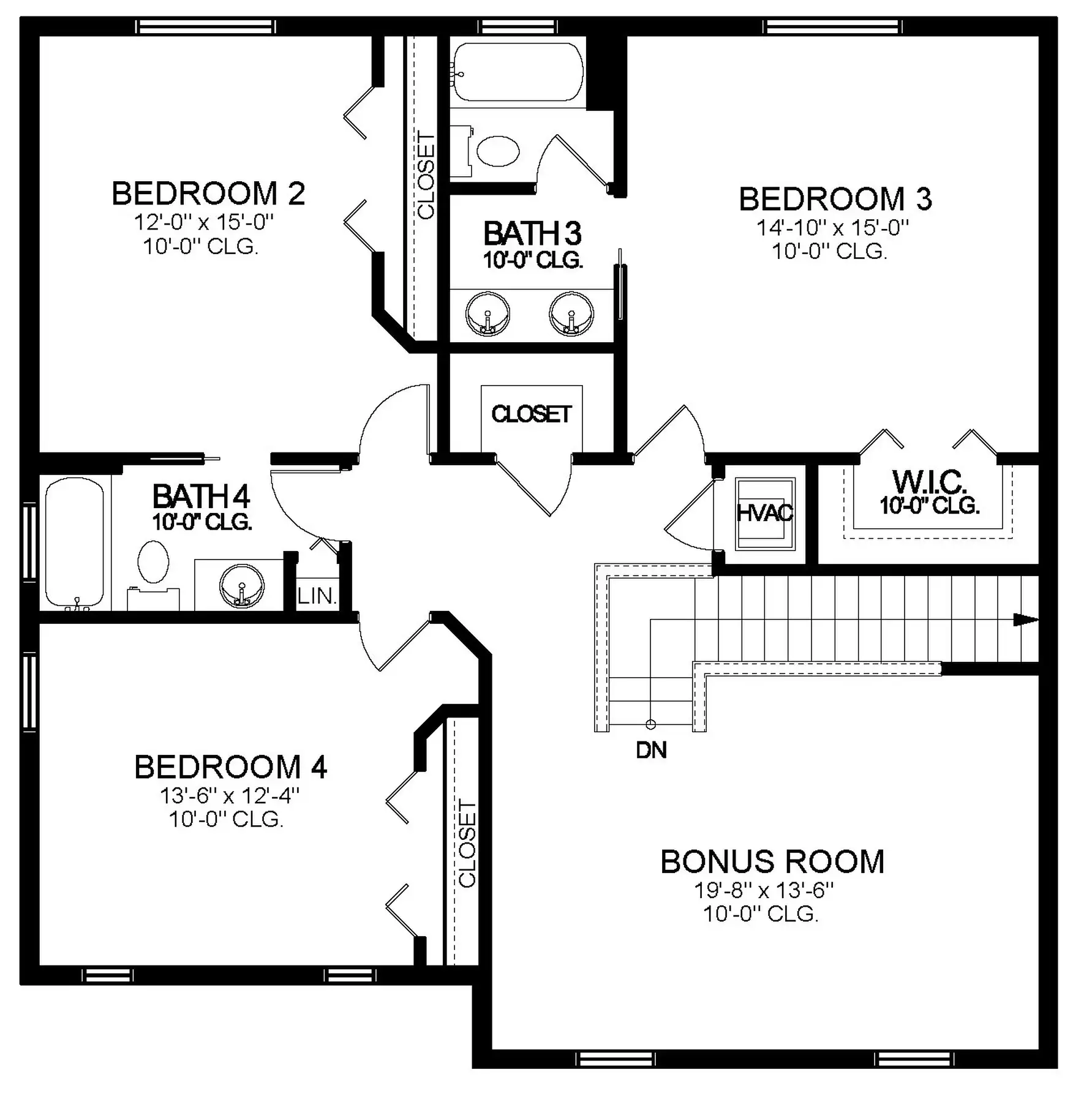

Second Floor:

1274.0

total FOOTAGE:

Total Living:

3398.0

Total Roofed:

4615.0

Overall Dimensions:

Width:

40' 0", 61.0'-8.0

Depth:

62' 4", 66.0'-4.0

Ridge Height:

27'-3, 33.0'-7.0

SKU 6373cc0180f6 Categories Colonial, Contemporary, Craftsmen, Spanish, Traditional

Additional information

Plan Type	10 Sets, 5 Sets, 8 Sets, CAD, Electronic
Bedrooms	4.0
Bathrooms	4.0
Half Bathrooms	1.0
Garage Spaces	3.0
First Floor SQFT	2124.0
Second Floor SQFT	1274.0
Third Floor SQFT	0.0
Basement SQFT	0.0
Total Living SQFT	3398.0
Lanai SQFT	549.0
Garage SQFT	668.0
Bonus SQFT	0.0
Total Roofed SQFT	4615.0
Width	40' 0", 61.0'-8.0
Depth	62' 4", 66.0'-4.0
Ceiling Height	10'-0
Roof Pitch	6.0
Ridge Height	27'-3, 33.0'-7.0
Roof Load	Shingles
Roof Framing	Engineered Trusses
Exterior Framing	C.M.U.
Car Location	Front
Other Features	Covered Front Porch, Covered Rear Porch, Garage, Kitchen Island, Kitchen Peninsula Bar, Master Bedroom Sitting Area, Open Floor Plan, Split Bedrooms, Volume/Vaulted, Walk-In Closets
Exterior Finish	Stone, Stucco
Style	Spanish, Colonial, Contemporary, Craftsmen, Traditional
Region	North Central, Northeast, Pacific Northwest, Pacific Southwest, South Central, Southeast

What Is Included With This Set Of Plans:

Cover Sheet: Including an image of the exterior front of the house and the index of drawings. Also protects the rest of the documents within the project set.
Foundation Plan: Slab plan complete with dimensions, foundation footing details, general foundation notes and Schedules. Shows and locate plumbing fixtures (this is not a plumbing plan).
Elevations: Minimum four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clutter and for easy construction.
Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special conditions as per plan.
Building Sections: Where applicable, building sections are included..
Details: Interior and Exterior details as required per plan. Common details are: Applicable Cornice (Eave) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from a quality set of plans.
Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
Floor Framing Plan: Only where needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions vary, this plan is for reference only.
Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions vary, this plan is for reference only.
