C07-04697-078A

C07-04697-078A_First Floor Plan
3
3
1
3

SQUARE FOOTAGE:

First Floor:

3920

Second Floor:

777

total FOOTAGE:

Total Living:

4697

Total Roofed:

6425

Overall Dimensions:

Width:

40' 0", 77' 8"

Depth:

62' 4", 113' 0"

Ridge Height:

27'-3, 30'-6

This plan can be modified

Please enter your contact information to request an estimate for our design services. Once we receive your details, a member of our team will follow up with you to review the modifications you’re considering and answer any questions you may have. This ensures we can provide you with the most accurate pricing and guidance for your project. If you prefer to speak with someone directly, you can reach us at 407-880-2333.

Modify Plan
C07-04697-078A — Floor Plan 1C07-04697-078A — Floor Plan 2
SKU e3c91b19feb0 Category

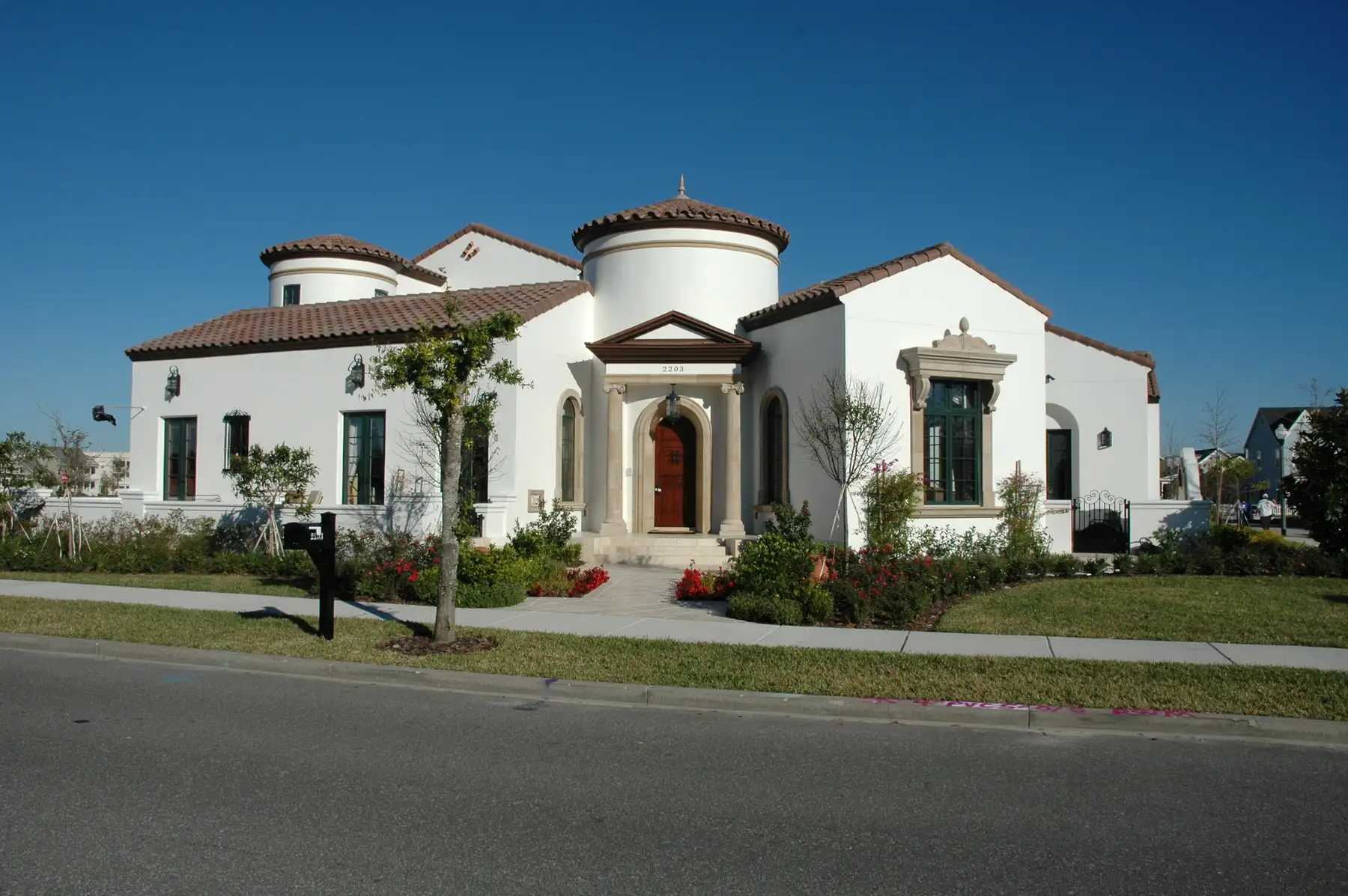

At the hearth of the house it’s the Courtyard with a fountain that captures this authentic Spanish-Style design. There are also Courtyards on the rear and side of house. The Guest Suite also acts as a Mother-in-Law room with its own private garage. A round Staircase, a Balcony overlooking the center Courtyard and an Outdoor Living Veranda with a summer kitchen, Wet Bar and Study are some of the many fixtures of this splendid home.

Plan Type

, , , ,

Levels

Bedrooms

Bathrooms

Half Bathrooms

Garage Spaces

Basement SQFT

First Floor SQFT

Second Floor SQFT

Third Floor SQFT

Total Living SQFT

Lanai SQFT

Garage SQFT

Bonus SQFT

Total Roofed SQFT

Width

,

Depth

,

Ceiling Height

Roof Pitch

Ridge Height

,

Roof Load

Roof Framing

Exterior Framing

Window Type

Vehicle Location

Exterior Finish

Style

Region

,

Other Features

, , , , , , , ,

What Is Included With This Set Of Plans:
  • Cover Sheet: Including an image of the exterior front of the house and the index of drawings. Also protects the rest of the documents within the project set.
  • Foundation Plan: Slab plan complete with dimensions, foundation footing details, general foundation notes and Schedules. Shows and locate plumbing fixtures (this is not a plumbing plan).
  • Elevations: Minimum four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clutter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special conditions as per plan.
  • Building Sections: Where applicable, building sections are included..
  • Details: Interior and Exterior details as required per plan. Common details are: Applicable Cornice (Eave) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from a quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
  • Floor Framing Plan: Only where needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions vary, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions vary, this plan is for reference only.
