C07-07340-109A

Price:

Price range: $6,300.00 through $6,700.00
Plan (Base)
Add-ons
Sub-Total (Base + Add-ons)
Order Total

Additional Copies

Plan Options

Additional Services

Additional Cost: $0.00

C07-07340-109A

5
5
2
4

SQUARE FOOTAGE:

First Floor:

5911

Second Floor:

1429

total FOOTAGE:

Total Living:

7340

Total Roofed:

10885

Overall Dimensions:

Width:

40' 0", 109' 0"

Depth:

62' 4", 160' 4"

Ridge Height:

27'-3, 33'-0

This plan can be modified

Please enter your contact information to request an estimate for our design services. Once we receive your details, a member of our team will follow up with you to review the modifications you’re considering and answer any questions you may have. This ensures we can provide you with the most accurate pricing and guidance for your project. If you prefer to speak with someone directly, you can reach us at 407-880-2333.

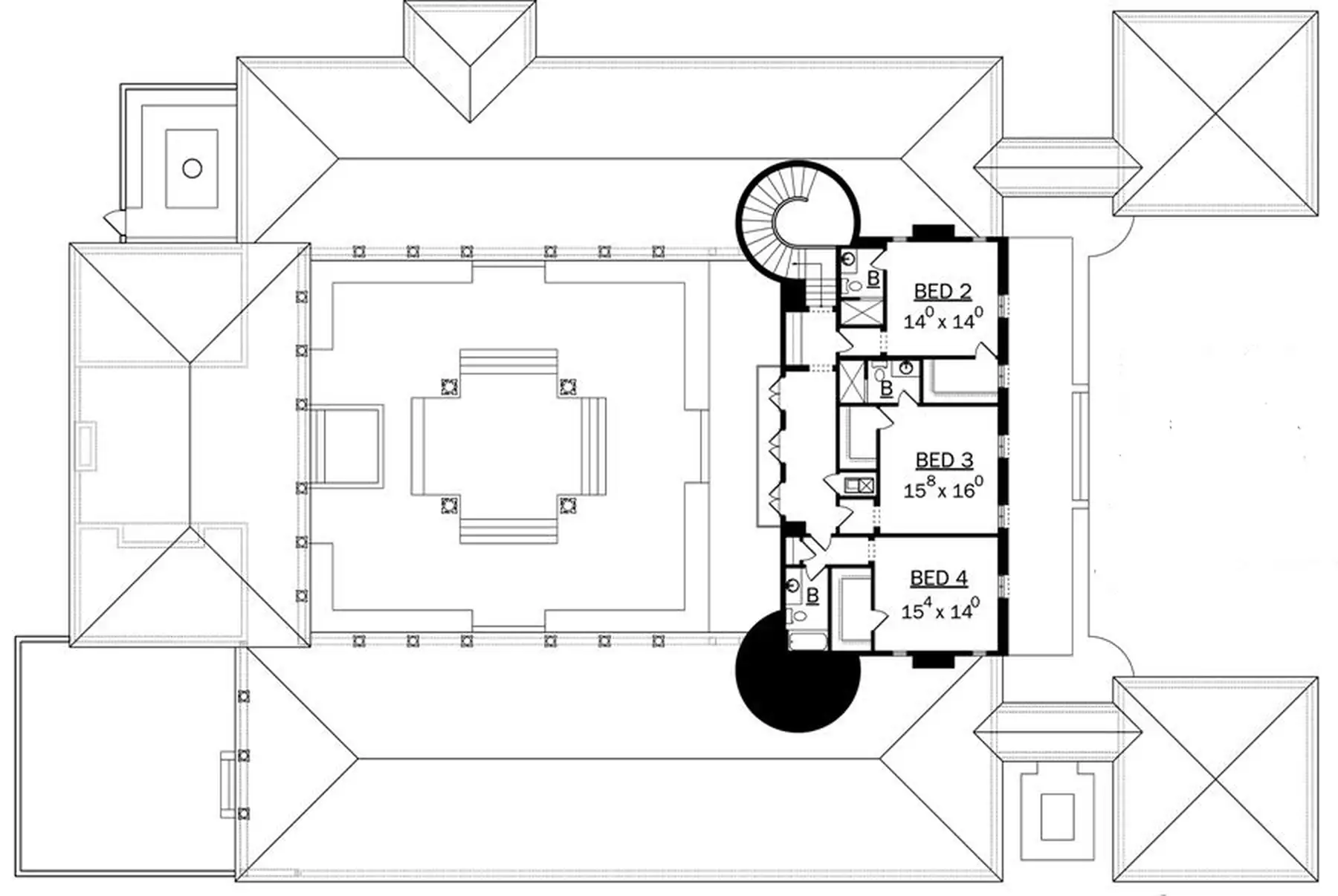

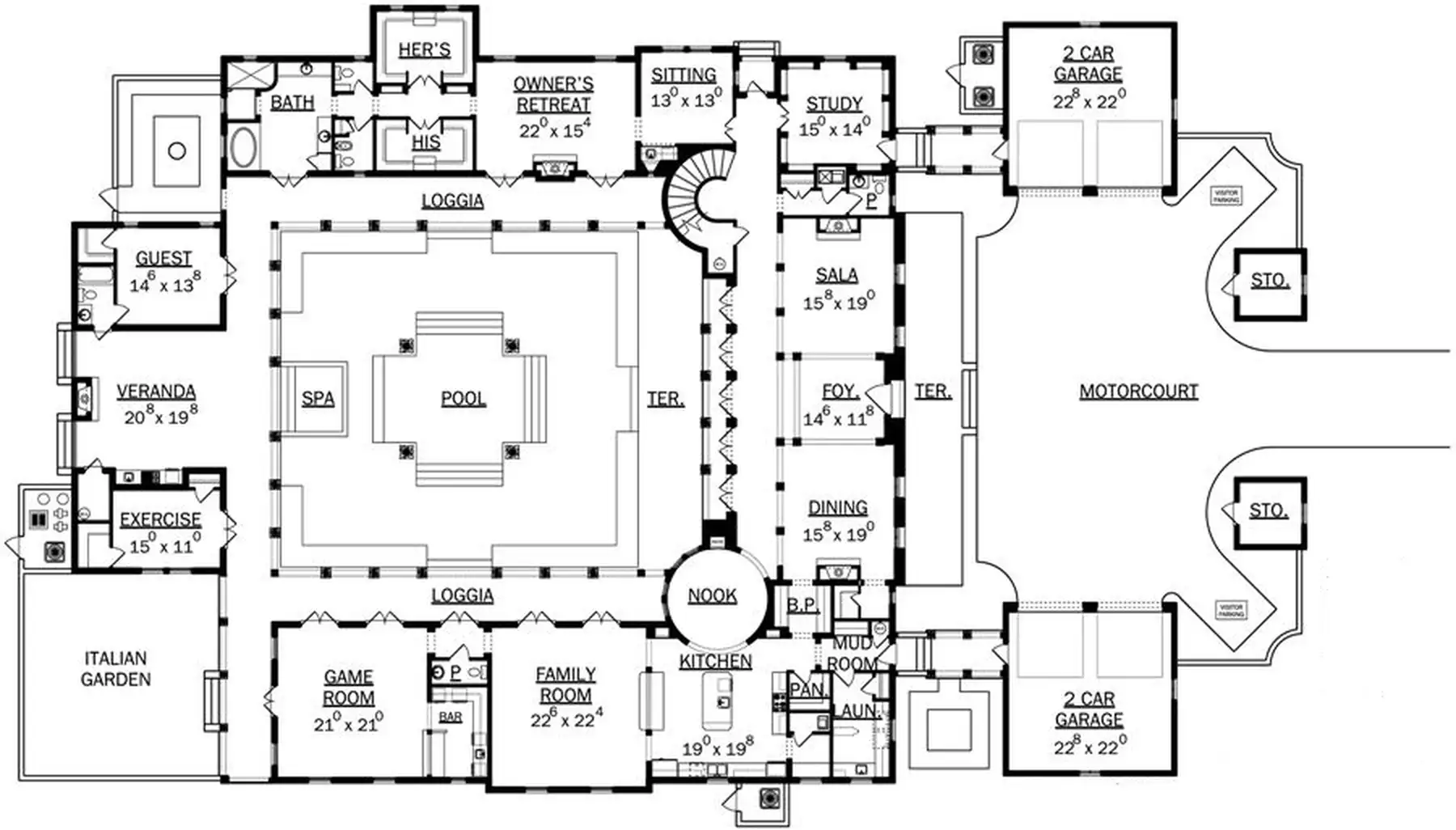

C07-07340-109A — Floor Plan 1C07-07340-109A — Floor Plan 2
SKU a835dcfa0889 Category

This splendid home is built around a courtyard, giving great views to every room. Enter the house from the motorcourt (with split garage space for four cars) and step into the foyer. From here, a wall of French doors gives you a gorgeous vista of the pool and extensive loggias. To the left, everyone can relax in the family room, open kitchen, and circular breakfast nook. More formal reception happens in the “sala” and dining room, each boasting a fireplace. Kids will love the game room and wet bar. Clear across the courtyard, the owner’s retreat has the wing to itself: a sitting room, fireplace, two big closets, and great bathroom (with two water closets) surround you with comfort. A detached guest suite sits next to the veranda and near the exercise room. Three more bedroom suites rest upstairs.

Plan Type

, , , ,

Levels

Bedrooms

Bathrooms

Half Bathrooms

Garage Spaces

Basement SQFT

First Floor SQFT

Second Floor SQFT

Third Floor SQFT

Total Living SQFT

Lanai SQFT

Garage SQFT

Bonus SQFT

Total Roofed SQFT

Width

,

Depth

,

Ceiling Height

Roof Pitch

Ridge Height

,

Roof Load

Roof Framing

Exterior Framing

Window Type

Vehicle Location

Exterior Finish

Style

Region

,

Other Features

, , , , , , , , ,

What Is Included With This Set Of Plans:
  • Cover Sheet: Including an image of the exterior front of the house and the index of drawings. Also protects the rest of the documents within the project set.
  • Foundation Plan: Slab plan complete with dimensions, foundation footing details, general foundation notes and Schedules. Shows and locate plumbing fixtures (this is not a plumbing plan).
  • Elevations: Minimum four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clutter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special conditions as per plan.
  • Building Sections: Where applicable, building sections are included..
  • Details: Interior and Exterior details as required per plan. Common details are: Applicable Cornice (Eave) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from a quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
  • Floor Framing Plan: Only where needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions vary, this plan is for reference only.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions vary, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions vary, this plan is for reference only.
